Ray diagram of convex lens when object is at infinity

With the help of rules for making a ray diagram of a convex lens, we can draw image formation of an object placed at infinity from the convex lens.

Steps of drawing ray diagram of the convex lens

   1.   Draw the diagram of the convex lens

   2.   Place the object in the given position

   3.   Draw a ray diagram by following the rules



Draw the diagram of the convex lens

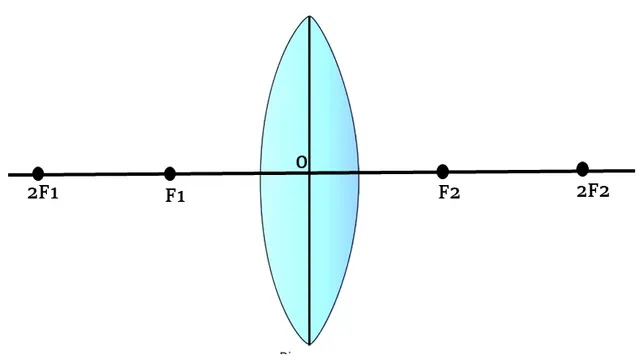

First of all, we will have to draw the diagram of a convex lens with a principal axis (a horizontal line passing through the optical center).

 Now mark `F_1` and `2F_1` on the left-hand side of the lens and `F_2` and  `2F_2` on the right-hand side of the lens.



Place the object in the given position

In this case, the object is at infinity, so we don’t have to draw the object.



Draw a ray diagram by following the rules

A ray diagram of the convex lens can be drawn by following the rules for making ray diagrams.

All the light rays coming from the object at infinity are parallel to the principal axis.



We will draw two parallel line incidents on the convex lens.

Both the rays pass through `F_2` or cross each other at `F_2` after refraction.

So the image is formed at `F_2`



Position of image	At `F_2`
Nature of image	Real and inverted
Size of image	Highly diminished
