Activity 8.4 Class 9 Science Chapter 8 Motion Solution
Activity 8.4 Class 9 Science
belongs to Chapter 8 Motion Class 9 Science. You will get a complete
solution with an explanation and a conclusion. After reading activity 8.4, you
will be able to answer the questions based on the activity.
.webp "Activity 8.4 Class 9 Science Chapter 8 Motion Solution")
Activity 8.4 Class 9 Science Chapter 8
You are suggested to study NCERT activity 8.4 class 9 science
chapter 8 explanation with a conclusion so that you can attempt questions based
on the activity 8.4 class 9 science.
Activity 8.4 Class 9 Science
· Automobiles
are fitted with a device that shows the distance traveled. Such a device is known
as an odometer. A car is driven from Bhubaneshwar to New Delhi. The difference
between the final reading and the initial reading of the odometer is 1850km.
· Find
the magnitude of the displacement between Bhubaneshwar and New Delhi by using
the Road map of India.
Activity 8.4 Class 9 Science Explanation
The difference between the final and initial reading
is 1850km which is the distance travelled by car from Bhubaneshwar to New
Delhi.
.webp "Activity 8.4 Class 9 Science Explanation")

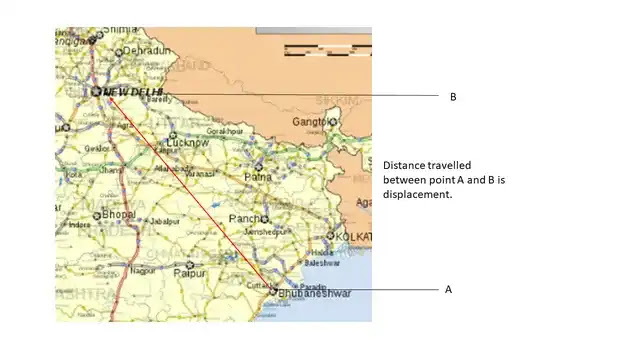

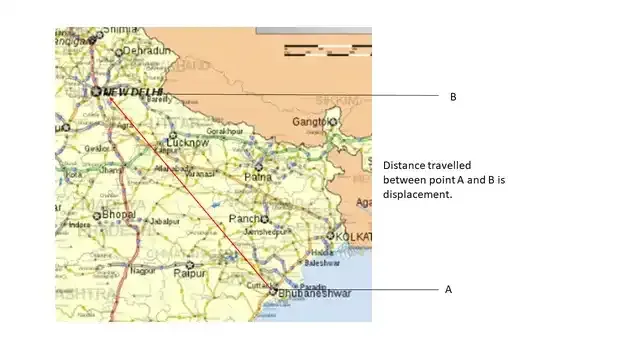

As you can see in the diagram, we consider a straight
line from Bhubaneshwar(point A) to New Delhi(point B)
The distance between Point A and point B is
displacement (1400km)which is shorter than the actual distance (1850km) travelled by car by road.
Activity 8.4 Class 9 Science Conclusion
Through this activity, we can conclude that displacement
is the shortest distance between the initial and final position of the object.
